Sale!

ABB Terra AC Display – 22 kW, Type 2 socket, RFID, MID, Display, Wifi + SmartMeeter

Name: ABB Terra AC Display - 22 kW, Type 2 socket, RFID, MID, Display, Wifi + SmartMeeter - superior wallbox
Price: 639.00 EUR
Availability: InStock

Original price was: €799.00.Current price is: €639.00. excl VAT

Included into KFW list (for German customers).

Exceptional quality from the world leader – ABB. Smart & future-proof station for the price of regular one.

Status and control via App
Display, RFID, MID-meter
Complete protection: over-current, over-voltage, under voltage, earth fault, integrated lightning protection
Charge scheduling ‘Peak shaving’
Load balancing
Possibility to charge only photovoltaic energy from local inverter
and much more

3 in stock

Categories: Wallbox chargers, Sale Offers & discounts

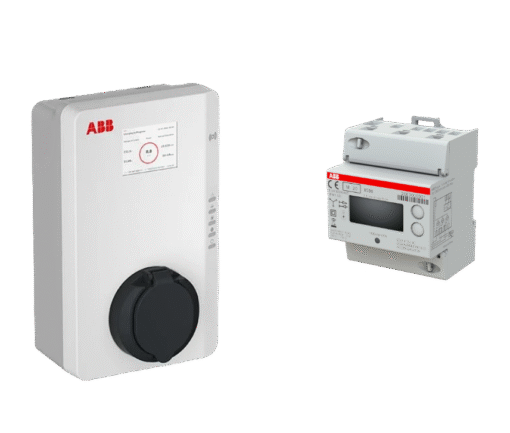

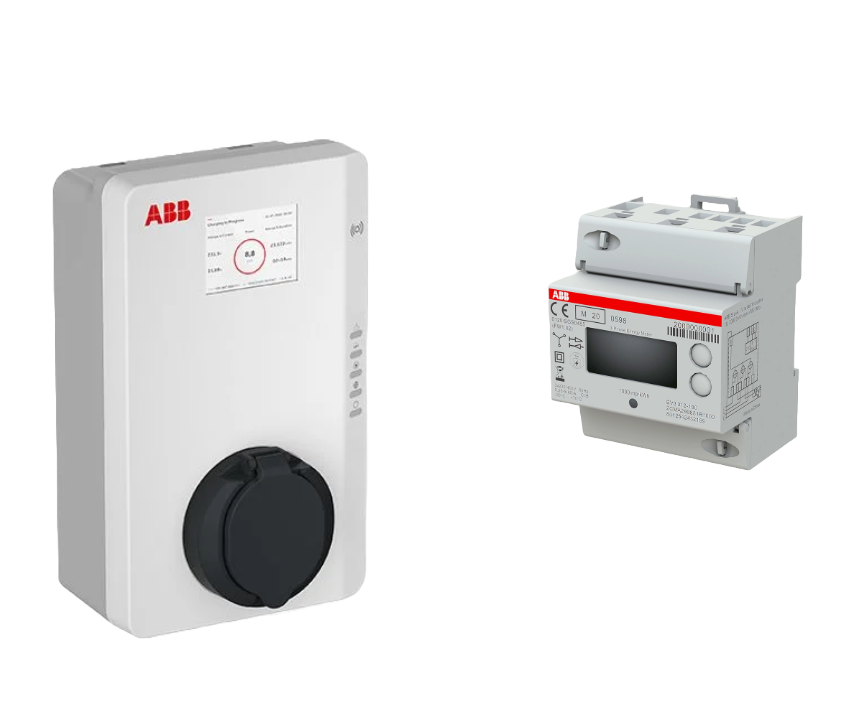

ABB Terra AC Wallbox 22 kW +EV3 012-100 3-phase Energy-Meter High-value quality • One of the best-value charger on the market • Broad range of connectivity options • Space-saving and easy-to-install design 📦 What’s in the box

Terra AC Display Wallbox – 22 kW, Type-2 socket, RFID, Wi-Fi/LAN, OCPP 1.6
EV3 012-100 Smart Energy-Meter – 3-phase, 5-65 A direct-connected, MID Class 1 /B, Modbus RTU, DIN-rail mount
Installation kit & quick-start guides

🔑 Key Advantages Plug-and-play load balancing – charger auto-discovers the EV3 meter via RS-485 and throttles current in real time Certified accuracy – MID compliance ensures billing-grade kWh data from the meter :contentReference Single-vendor warranty – both devices backed by ABB’s support network ⚙️ Technical Snapshot Terra AC Wallbox + EV3 012-100 Meter Max power | 22 kW (3-phase × 32 A) | 65 A direct Comms | LAN · Wi-Fi · Bluetooth · RS-485 · OCPP 1.6 | RS-485 (Modbus) Metering | external | Active energy import/export Accuracy | – | Class 1 / B (MID) Protection | DC GF, OVP, OCP | IP21 enclosure Mounting | Wall | 4-TE DIN-rail | Safety and protection • Evaluated and tested by independent third party to meet the highest standards • Current limiting protection prevents against nuisance tripping and over current to the installation • Integrated protections including DC ground fault and over voltage ABB Terra AC dynamic load management Load management • Built-in energy meter • Manual or automated (dynamic) load management • Setup for external energy meter integration for dynamic load management • Ready for integration with advanced smart building energy system Future proof flexibility • Smart functionality for optimised charging • Energy meter integration for dynamic load management • Dedicated App for control and configuration • Remote software update enabled

Presentation of all Smart functionalities: Chargersync APP

🧠 Smart Functionality – ChargeSync app – set tariffs & peak-shaving schedules (save €100–300 / yr) – Dynamic load management – real-time current adjustment based on household load – Remote firmware updates – future features delivered over-the-air *Typical evening-peak premiums: 25–40 % (18:00–22:00); savings vary by tariff.

ChargeSync user App for Terra AC control, status and configuration Station setup:

Charging status:

Terra AC product Brochure: ABB_Terra_AC_wallbox_Brochure_A4 PLEASE NOTE – for Terra AC models with display TWO WEEK delivery time

Brand	ABB
Communication	Ethernet, OCPP 1.6, WiFi
Number of sockets	1
Phases	1 phase, 3 phases
Power (kW)	22
Socket	Type 2
Stainless Housing	Plastic
Leakage current protection	Integrated
Dimensions ( Width x Height x Depth )	195 x 320x 110 mm
Manufacturer	ABB
Weight	2 kg
Impact resistance	IK10 (IK8+ for operating temperature from -35 to -30 °C)
Operational temperature	-35…+50 °C (derating may apply)
Lifetime	10 years. 16 h charging, 8 h standby, 5 charge sessions per day
Connector	Socket- Type 2
Display	Yes
Integrated Cable	Type 2 socket
RFID	Yes
Dynamic Power balancing	Yes, with SmartMeter
OCPP ready	Yes
Smart control via	App
Warranty	24 months
Charging schedule	Yes
Operating Temperature	-35'C to +50'C
