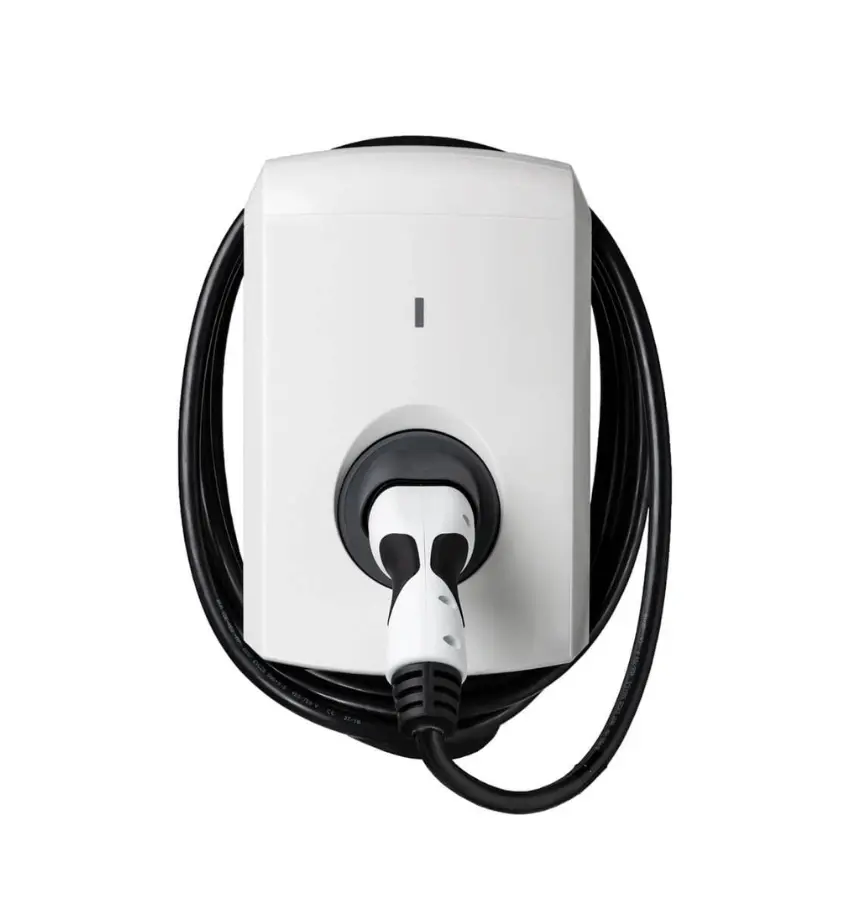

Alfen Single S-Line 22kW with 5m cable, MID, RFID, 4G
Original price was: €899.00.€499.00Current price is: €499.00. excl VAT
Alfen Single S-line model 904460597 22 kW 3-phase charging station with, MID meter, RFID, 4G with sim, 5meter cable – a premium solution for a safe and reliable charging at home or public places.
OCPP compliant therefore can be connected to the OCPP online platform (back-end) and thus be controlled by a mobile app.
3 in stock
Alfen Single S-Line 22kW model 904460597 with5m cable key features:
Delivering up to 22 kW of AC power
- DC-leak protection – This station has built-in DC leakage protection, which detects direct current (DC) leakage and stops it immediately. This protects both the electric car and the electricity grid from possible electrical faults or damage.
- App control – The app allows you to monitor the charging process remotely, set up a charging schedule, and view charging history.
- RFID – The charging station is equipped with a user identification function using RFID (physical token) or the Charged app.
- MID Meter – certified meter to ensure precise measuring of delivered kWh
DATA SHEET:
| Brand | |
|---|---|
| Power (kW) | 22 |
| Number of sockets | 0 |
| Number of plugs | 1 |
| Phases | 1 phase, 2 phases, 3 phases |
| Energy Meter | Digital-external |
| Degree of protection | IP55 |
| Impact resistance | IK10 |
| UV resistant | Yes |
| Certificate | CE |
| Leakage current protection | Integrated |
| Weight | 8.2 kg |
| Dimensions ( Width x Height x Depth ) | 373x242x173 mm |
| Manufacturer | Alfen (Netherlands) |
| Brand and Model | Alfen EVE Single PRO Line |
| Charging schedule | Yes |
| Communication | 4G, Ethernet |
| Connector | Cable Type 2 |
| Dynamic Power balancing | Yes |
| Operating Temperature | -25°C to +40°C |
| OCPP ready | Yes |
| RFID | Yes |
| Smart control via | App, web Dashboard |
| Warranty | No Warranty |
