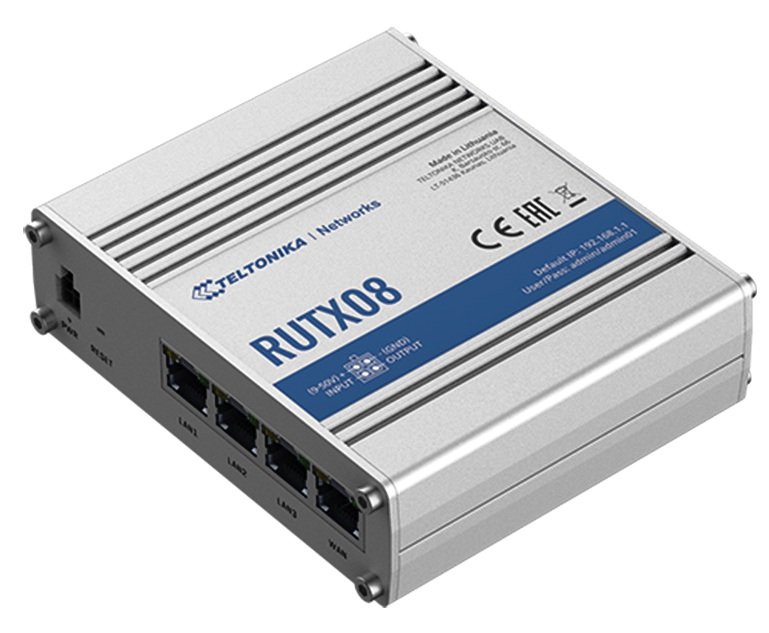

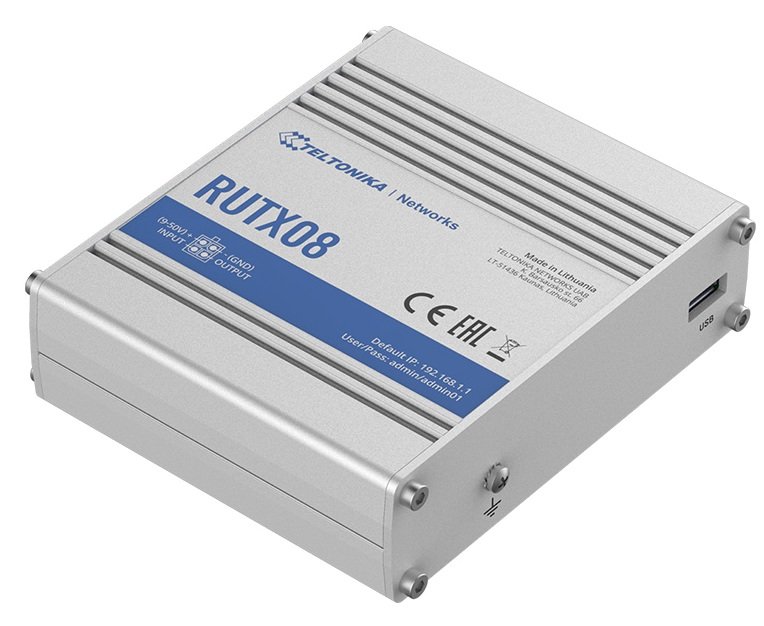

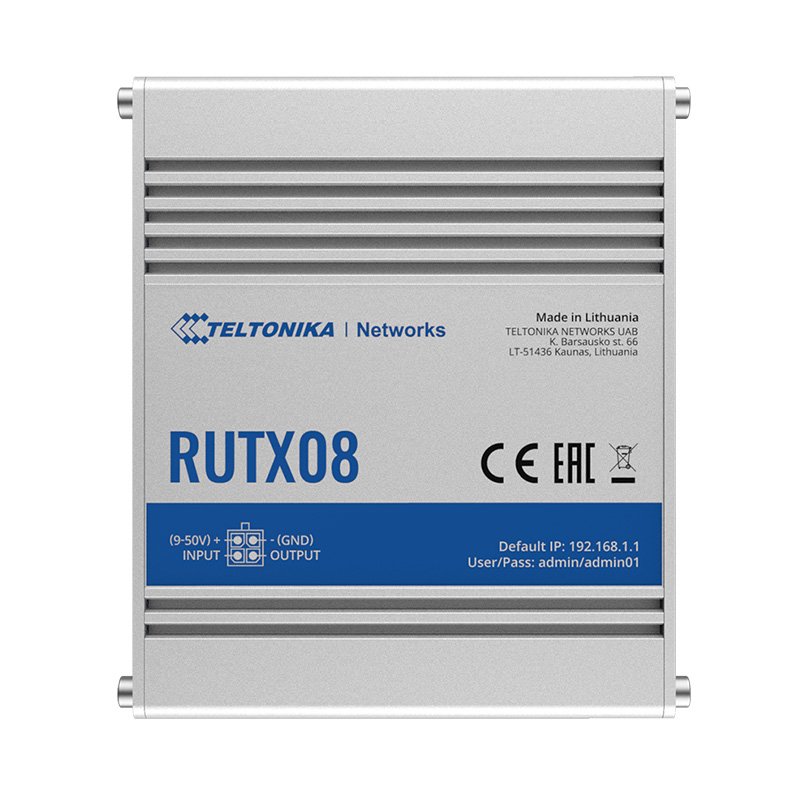

RUTX08 Industrial Ethernet Router, 4 x Gigabit Ethernet, VPN

ETHERNET

• WAN: 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

• LAN: 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

• Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)

• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)

• VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

• Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

• Firewall: Port forward, traffic rules, custom rules

• DHCP: Static and dynamic IP allocation, DHCP Relay, Relayd

• QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

• DDNS: Supported >25 service providers, others can be configured manually

• Network backup: VRRP, Wired options, each of which can be used as an automatic Failover

• Load balancing: Balance Internet traffic over multiple WAN connections

• SSHFS: Possibility to mount remote file system via SSH protocol

SECURITY

• Authentication: Pre-shared key, digital certificates, X.509 certificates

• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

• VLAN: Port and tag based VLAN separation

• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

• OpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods

• OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC

• IPsec: IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)

• GRE: GRE tunnel

• PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3 support

• Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

• DMVPN: Method of building scalable IPsec VPNs

• SSTP: SSTP client instance support

• ZeroTier: ZeroTier VPN client support

• WireGuard: WireGuard VPN client and server support

MODBUS TCP SLAVE

• ID range: Respond to one ID in range [1;255] or any

• Allow Remote Access: Allow access through WAN

• Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

TCP MASTER

• Supported functions: 01, 02, 03, 04, 05, 06, 15, 16

• Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

MODBUS DATA TO SERVER

• Protocol: HTTP(S), MQTT, Azure MQTT

• MQTT Gateway: Allows sending commands and receiving data from MODBUS Master through MQTT broker

• Supported modes: TCP Master, DNP3 Outstation

• WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

• FOTA: Firmware update from server, automatic notification

• SSH: SSH (v1, v2)

• TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

• MQTT: MQTT Broker, MQTT publisher

• SNMP: SNMP (v1, v2, v3), SNMP Trap

• JSON-RPC: Management API over HTTP/HTTPS

• MODBUS: MODBUS TCP status/control

• RMS: Teltonika Remote Management System (RMS)

IOT PLATFORMS

• Cloud of Things: Allows monitoring of: Device data, Mobile data, Network info, Availability

• ThingWorx: Allows monitoring of: WAN Type, WAN IP

• Cumulocity: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP

• Azure IoT Hub: Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server

SYSTEM CHARACTERISTICS

• CPU: Quad-core ARM Cortex A7, 717 MHz

• RAM: 256 MB, DDR3

• FLASH storage: 256 MB, SPI Flash

FIRMWARE / CONFIGURATION

• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup, restore point

• FOTA: Update FW

• RMS: Update FW/configuration for multiple devices at once

• Keep settings: Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

• Operating system: RutOS (OpenWrt based Linux OS)

• Supported languages: Busybox shell, Lua, C, C++

• Development tools: SDK package with build environment provided

USB

• Data rate: USB 2.0

• Applications: Samba share, USB-to-serial

• External devices: Possibility to connect external HDD, flash drive, additional modem, printer

• Storage formats: FAT, FAT32, NTFS

INPUT / OUTPUT

• Input: 1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high

• Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA

• Events: Email, RMS

• I/O juggler: Allows to set certain I/O conditions to initiate event

POWER

• Connector: 4-pin industrial DC power socket

• Input voltage range: 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection

• PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 – 50 VDC

• Power consumption: 6 W Max

PHYSICAL INTERFACES

• Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps

• I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector

• Status LEDs: 8 x LAN status LEDs, 1 x Power LED

• Power: 1 x 4-pin power connector

• USB: 1 x USB A port for external devices

• Reset: Reboot/User default reset/Factory reset button

• Other: 1 x Grounding screw

• Casing material: Aluminium housing with DIN rail mounting option

• Dimensions (W x H x D): 115 x 32.2 x 95.2 mm

• Weight: 345 g

• Mounting options: DIN rail, flat surface placement

OPERATING ENVIRONMENT

• Operating temperature: -40 °C to 75 °C

• Operating humidity: 10% to 90% non-condensing

• Ingress Protection Rating: IP30

REGULATORY & TYPE APPROVALS

• Regulatory: CE, RoHS, REACH

EMI IMMUNITY

• Standards: EN 55032:2015, EN 55035:2017

• ESD: EN 61000-4-2:2009

• RS: EN 61000-4-3:2006 + A1:2008 + A2:2010

• EFT: EN 61000-4-4:2012

• Surge protection: EN 61000-4-5:2014

• CS: EN 61000-4-6:2014

• DIP: EN 61000-4-11:2004

SAFETY

• Standards: IEC 62368-1:2014 EN 62368-1:2014+A11:2017
