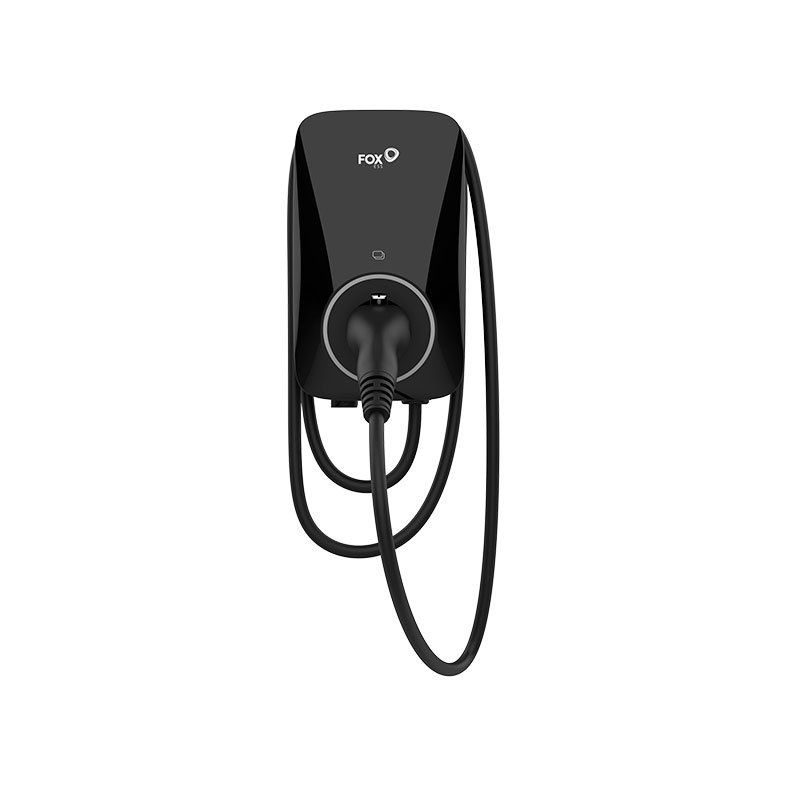

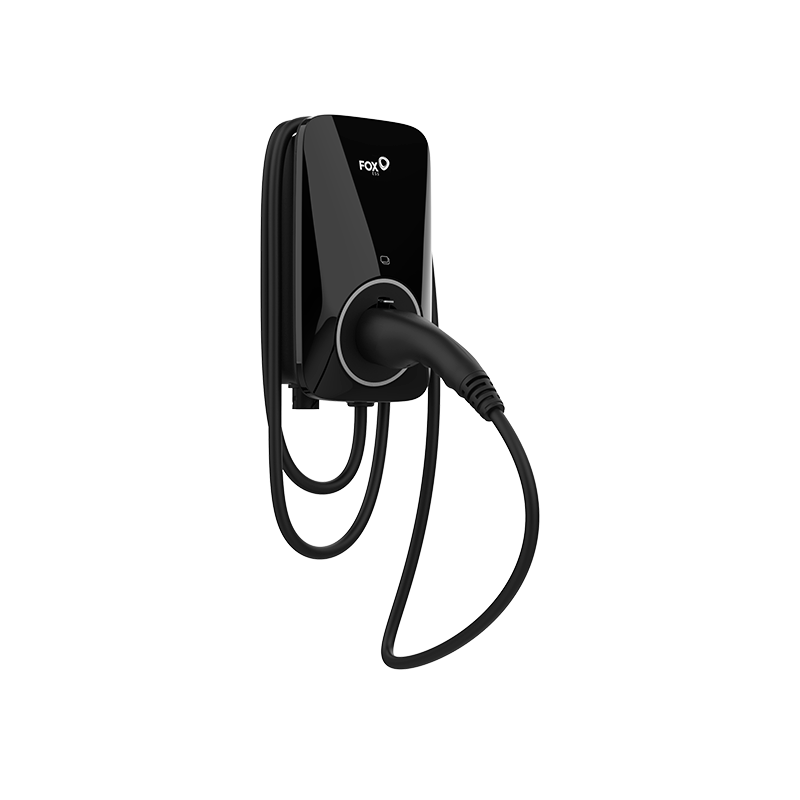

FoxESS A-Series is a high-performance and intelligent electric vehicle charger that delivers up to 22 kW via a fixed Type 2 charging cable with a 5-meter reach. Ideal for private homes and commercial properties, it offers advanced features such as app control, scheduled charging, and seamless integration with solar panel systems. Designed with a sleek yet durable housing, it is built for long-term daily use while maintaining high safety standards. With external dynamic load management, it ensures your home’s electrical system is never overloaded during charging.
If you have a FoxESS solar system, this charger can be directly connected to your FoxESS inverter via a data cable for real-time energy optimization. For other solar systems, simply install a Fox Smart Meter in your distribution panel, and the charger will smartly utilize surplus solar energy for charging.
Technical Specifications:
-
Model: A011K (Cable Version)
-
Power Output: 11 kW (3-phase, 400V AC)
-
Charging Connector: Fixed Type 2 cable
-
Cable Length: 5 meters
-
Communication Options: Wi-Fi and Bluetooth (4G optional), OCPP 1.6 (JSON)/2.0 (optional)
-
Charging Control: FoxESS app (includes scheduling, smart charge, plug & play, or RFID card)
-
Load Management: Supports external dynamic load balancing
-
Solar Integration: Compatible with FoxESS inverters or Fox Smart Meter for third-party systems
-
Safety Features: IP55 rated, IK08 impact resistance, AC 30mA & DC 6mA residual current protection, overcurrent, earth fault, surge, voltage fluctuation, and over-temperature protections
-
Operating Temperature: -30°C to +50°C
-
Dimensions: 320 × 190 × 130 mm
-
Weight: 3.55 kg
-
Certifications: CE, EN/IEC 61851-1:2019, EN/IEC 61851-21-2:2021, EMC Class B
